If your Pigment application includes modelers without security permissions who aren’t fully trusted with all data within that application, this guide is for you. It explains how formula changes can unintentionally expose sensitive data and how to isolate and secure vulnerable parts of your model.
Access rights in Pigment are dynamic and tied to the model's state. This means modelers with the Configure Blocks permission—but without Define Application Security permission—can still impact how access rights are applied by modifying formulas.
Examples of how formulas can expose data
1. Reveal data by changing List Properties’ formulas
In this example, the model has the below two Dimension Lists:
Access Level
Employee
The Security Setup
The goal was to prevent our test user Non-Security Modeler from editing any items in the Employees Dimension and from seeing the salaries of any employees with an Access Level higher than L4.

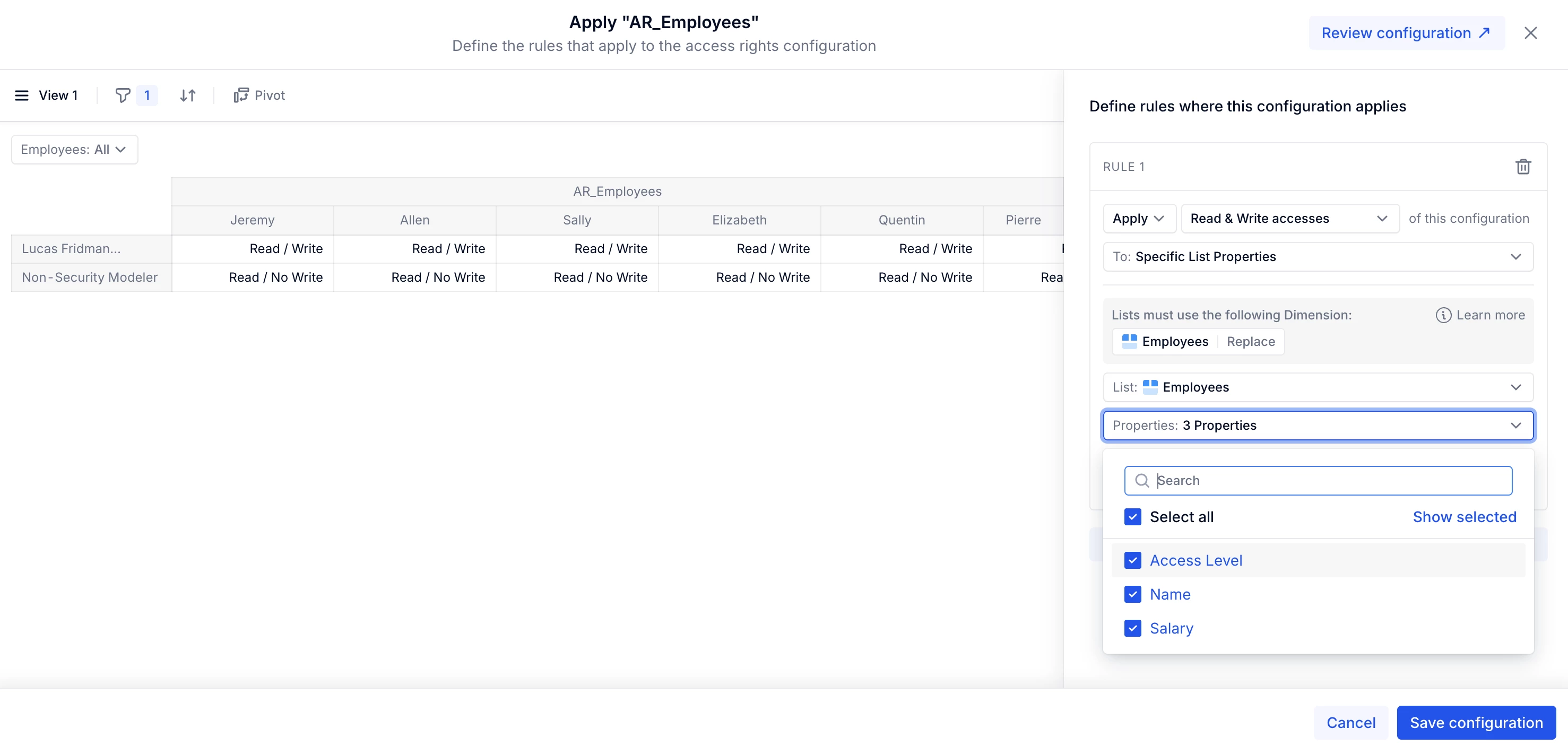

Therefore Non-Security Modeler was granted Read/No Write access rights to the Specific List Properties of Employees:
Then Non-Security Modeler was granted no access rights (No Read/No Write) to the List Item Values of all Items in Employees, for L4 and L5:
The formula exploitation
A modeler without access rights to edit the Access Level Dimension directly can still edit the ‘Access Level’ Property attached to the Employee Dimension, as the below image shows:
2. Reveal data by changing a Metric’s formulas
In this example, the model is as above but has additional Metrics to allow certain Members to manage access rights.
These include:
A Boolean Metric defining User access level:
Another Boolean applying the User access levels to employee data, through a formula:
An access rights Metric that turns the User access levels into access rights:
And finally a second access rights Metric AR_Employees that applies the access rights to all employees:
The employees’ salaries are held in a dedicated Metric Employee Monthly Salaries:
The Security Setup
The Users’ access rights are now governed by the access rights Metric AR_Employees, applying to all Metrics structured on Employee.
The formula exploitation
A modeler without access rights to see all the data in Employee Monthly Salaries can still edit the Boolean Metrics’ formulas, as the below image shows:
Mitigation
The best mitigation is having fully trustworthy modelers working on your Application’s data. As this can’t always be guaranteed, you can strengthen security as follows:
Move the Blocks containing the ‘vulnerable’ formulas into the Application’s Security folder.
Grant CanDefineSecurity permission only to fully trustworthy users.
Non-security modelers are no longer able to indirectly impact security, as access to Blocks within the Security folder is restricted.
